As low as £49.20 £41.00

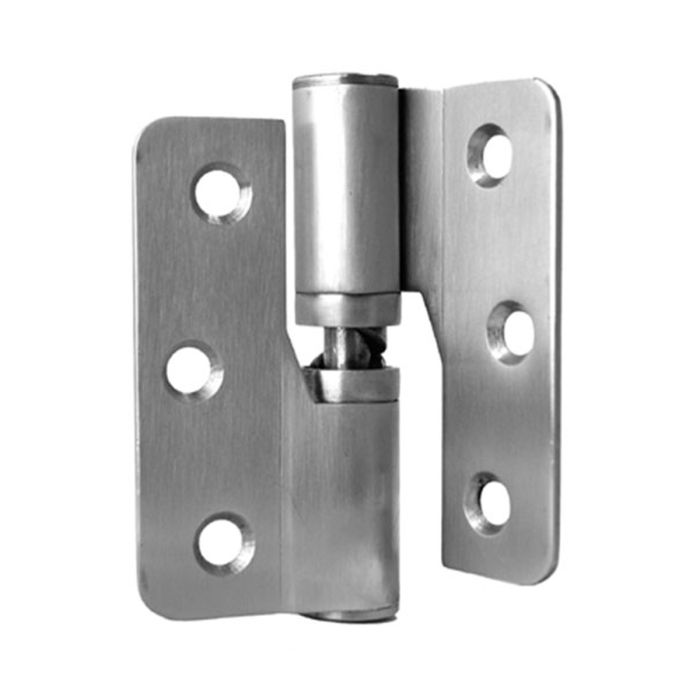

This Marine Grade Satin Stainless Steel Cubicle Gravity Hinge is designed to automatically close or open the cubicle door. It is durable and high in strength.
Â
30 days free credit with
Buy Now, Pay Later, options at checkout
This Marine Grade Satin Stainless Steel Cubicle Gravity Hinge is designed to automatically close or open the cubicle door. It is durable and high in strength.
Due to the construction of the hinges, the mechanism uses gravity to help the door swing open or closed. This is often very helpful in small washrooms, where space is limited. The hinge can be adjusted on-site to fall open or close.
Suitable for 12-13mm and 18-21mm board thicknesses, with a satin stainless steel finish.
Fixings are supplied separately.
The hinges are supplied as fall-closed. To adjust them to fall open, the fitter needs to remove the small grub screw in the bottom of the hinge with the Allen key supplied, then rotate the bottom nylon cam in the body of the hinge around to the next hole and tighten the grub screw.
Product Codes:
- T110SML - Left Handed Gravity Hinge Pair - Marine Grade Satin Stainless SteelÂ
- T110SMR - Right Handed Gravity Hinge Pair - Marine Grade Satin Stainless SteelÂ
- T170-SSS - 12-13mm Woodscrew Fixings - Satin Stainless Steel
- T171-SSS - 18-21mm Woodscrew Fixings - Satin Stainless SteelÂ
- T190 - 12-13mm Bolt Through Fixings - Satin Stainless Steel
- T191 - 18-21mm Bolt Through Fixings - Satin Stainless Steel
