Delabie TEMPOFIX 3 Frame System for Urinals
Product Code: 543006D

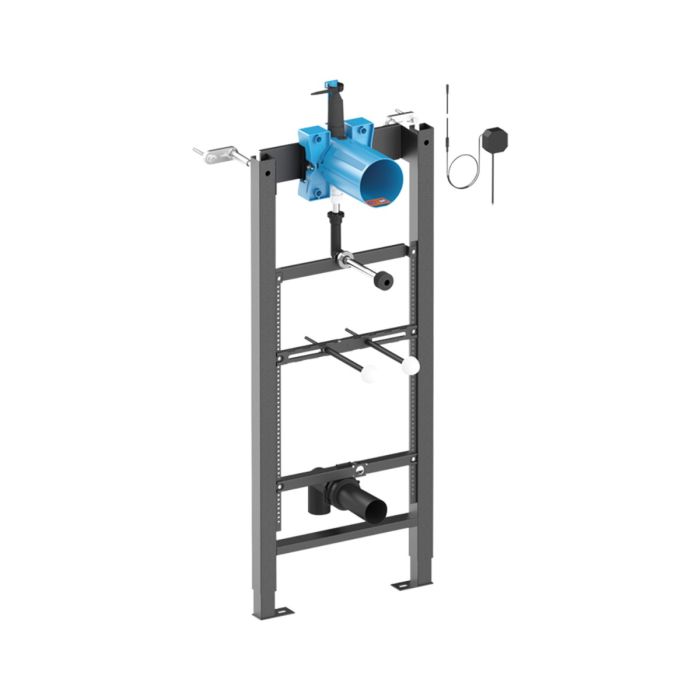

The Delabie TEMPOFIX 3 Frame System is a robust, pre-mounted steel frame designed for wall-mounted urinals with a 35mm inlet. Ideal for commercial and public washrooms, this system offers quick installation and long-term durability.
The Delabie TEMPOFIX 3 Frame System is a robust, pre-mounted steel frame designed for wall-mounted urinals with a 35mm inlet. Ideal for commercial and public washrooms, this system offers quick installation and long-term durability.
Constructed from black powder-coated steel, the frame is adjustable in height from 985mm to 1,385mm and depth from 160mm to 220mm, accommodating various wall thicknesses from 13mm to 120mm. It features a Ø50mm soil pipe with a waterproof seal and a Ø35mm connection tube, ensuring a secure and leak-free installation.
The system includes anchoring bolts for fixing to the floor and load-bearing walls, and is compatible with Delabie control plates (Ref. 430000, 430010, or 430030). It operates on a 230/6V mains supply, with a remote transformer and 5m cable included. The valve is configured for system flush, with accessories and connection protection provided.
Backed by a 30-year manufacturer’s warranty, the TEMPOFIX 3 Frame System is engineered for ease of maintenance and reliability in high-traffic environments.
Key Features
- Pre-mounted steel frame for quick installation
- Adjustable height: 985mm to 1,385mm
- Adjustable depth: 160mm to 220mm
- Compatible with wall finishes from 13mm to 120mm
- Ø50mm soil pipe with waterproof seal
- Ø35mm connection tube
- Anchoring bolts included for secure installation
- 230/6V mains supply with remote transformer and 5m cable
- Valve configured for system flush with accessories and connection protection
- Compatible with Delabie control plates (Ref. 430000, 430010, or 430030)
- 30-year manufacturer’s warranty
Product Code:
- 543006D
