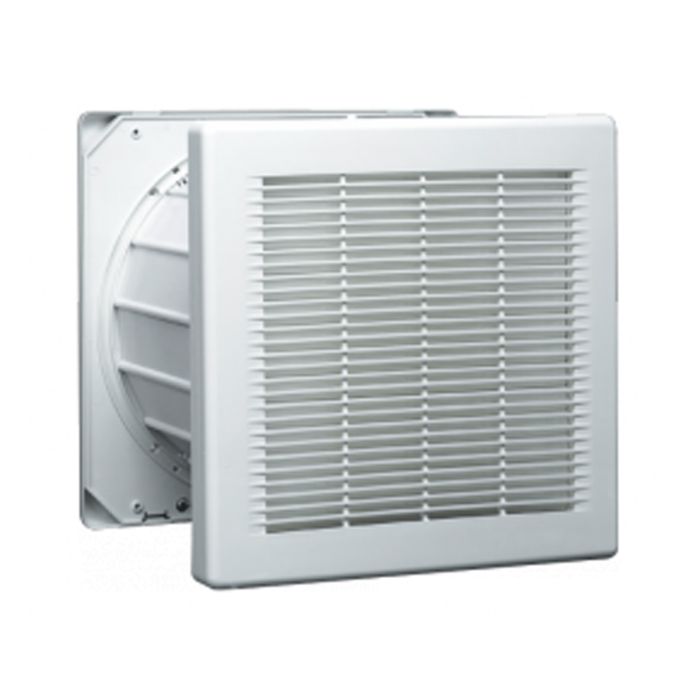

230mm extractor fan with automatic operated shutters constructed from impact resistant high gloss ABS for strength and durability.Â
The motor is fitted with thermal over load protection to break the circuit at a temperature below the level that would cause burning.
230mm Extractor fan with automatic operated shutters constructed from impact resistant high gloss ABS for strength and durability.
The motor is fitted with thermal over load protection to break the circuit at a temperature below the level that would cause burning.
Suitable for mounting on panels, walls or windows. To be used in areas where ventilation requirement is high, such as hotels, schools, offices and factories.
Key Features:
- Suitable for panel/wall mounting or window mounting with appropriate window accessory kit
- Simple installation
- External 2 speed reversible on/off controller available
- Manufactured impact resistant high gloss ABS for strength and durability
- Motor fitted with thermal over load protection
Technical Specification:
- Meets the requirements of Building Regulation Document F.
- IP44 rated, DEMKO Approved, and CE marked in accordance with all the relevant EEC Harmonised Directives.
- Double Insulated, class II motor fitted with thermal protection
- Hole Diameters: Window 260mm, Wall 280mm
- Panel Mount Airflow: 259l/sec
- Window/Wall Mount Airflow 190l/sec
Product Range Details:
- Rated Voltage 220-240v-50Hz
- Rated Wattage 90w
