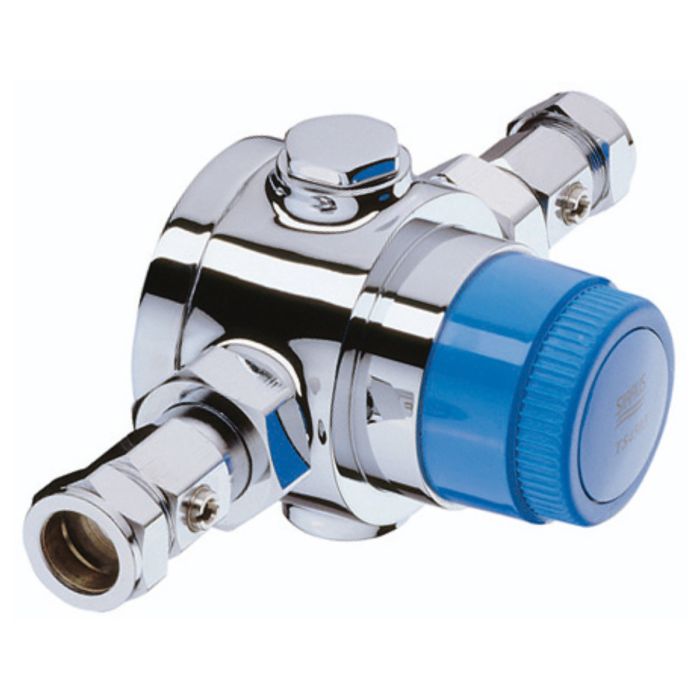

Bristan Gummers 28mm Group Shower Thermostatic Mixing Valve

£568.62 £473.85
TS6000ECP

The Gummers 28mm thermostatic mixing valve is ideal for group applications at pressures as low as 0.1 bar and the temperature control can be locked in position or allow adjustment. The valve has an automatic shutoff in the event of hot or cold water supply failure. It operates at a maximum pressure differential of 10:1.

Check valves and serviceable filters included as standard. The Isolation valves fitted as standard.

The Gummers 28mm thermostatic mixing valve is ideal for group applications at pressures as low as 0.1 bar and the temperature control can be locked in position or allow adjustment. The valve has an automatic shutoff in the event of hot or cold water supply failure. It operates at a maximum pressure differential of 10:1.

Check valves and serviceable filters included as standard. The Isolation valves fitted as standard.

Pressures:

  • Minimum pressure drop: 0.1 bar
  • Maximum dynamic pressure: 5 bar
  • Maximum static pressure: 10 bar

Temperatures:

  • Factory preset temperature: 43ºC
  • Maximum hot water supply temperature: 80ºC
Performance with open outlet
Pressure Drop 0.1 0.2 0.5 1 2 3 4 5
Flow Rate 23 36 62 88 125 150 176 195
