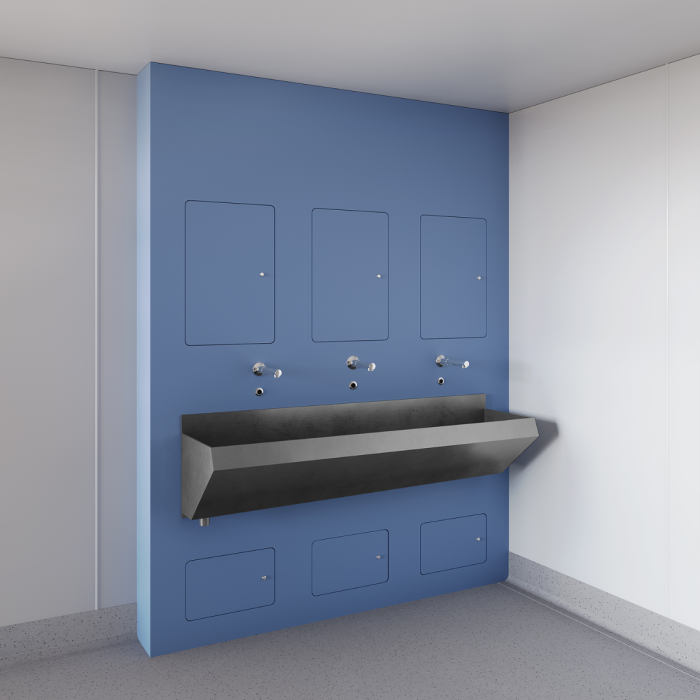

Healthcare IPS Unit with Surgeons Scrub Up Wash Trough
Typically 18-21 Working Days From Sign Off
Product Code: Please select your options to view
Made-to-measure healthcare IPS duct set module with a stainless steel surgeon's scrub-up wash trough for installation in hospital surgery rooms. Choose from left- or right-handed waste outlet positions in the wash trough.
The flush-fronted healthcare IPS unit features hinged, lockable access panels for easy maintenance. These modules are designed for use in any hospital or healthcare setting that requires medical staff to perform pre-surgery handwashing.
Made-to-measure healthcare IPS duct set module with a stainless steel surgeon's scrub-up wash trough for installation in hospital surgery rooms. Choose from left- or right-handed waste outlet positions. Includes three wall-mounted sensor taps.
The flush-fronted healthcare IPS unit features hinged, lockable access panels for easy maintenance. These modules are designed for use in any hospital or healthcare setting that requires medical staff to perform pre-surgery handwashing.
It is a frameless unit with ends manufactured by folding a single piece of solid-grade laminate. The seamless corners and flush-recessed doors mean there are fewer recesses, reducing the risk of bacterial growth.
Lockable flush access panels are mounted on the top and bottom of the unit to facilitate simple maintenance. It can be specified in Polyrey anti-bacterial laminate (colour chart attached) and manufactured in bespoke sizes. Alternative colours and laminate manufacturers are available on request.
All modules are produced to HBN00-10 and HTM64 specifications. Panels are manufactured as standard from impact-resistant, sanitised, antibacterial compact-grade laminate for optimum hygiene, allowing appropriate cleaning chemicals and water to be used without affecting the material's lifespan.
The scrub-up trough standard dimensions are 2400mm wide x 400mm deep.
Available for installation in 4 standard configurations
- One IPS return end (to fit in the corner of a room) with a left-handed waste outlet.
- One IPS return end (to fit in the corner of a room) with a right-handed waste outlet.
- Two return ends (boxed out) with a left-handed waste outlet.
- Two return ends (boxed out) with a right-handed waste outlet.
Recessed units are also available and priced on application.
Aiding in infection control:
- Sanitised antibacterial solid-grade laminate panels
- Abuse resistant
- Impervious to water
- Resistant to suitable cleaning chemicals
- Close-fitting panels to minimise edge surfaces
IPS Construction:
- Steel wall and floor fixing channels
- Sanitised antibacterial SGL panels
- Pivoting and lockable access panels
- Post-formed SGL vertical panelling
- Suitable for heavy use and wet environments
Scrub up, Wash Trough Unit Included:
This product comes complete with a Pland Sola Stainless Steel Scrub 2400mm Right Hand Trough with a Trap Shroud and Delabie Tempomatic Sensor Tap with BIOCLIP Removable Spout. The healthcare scrup-up trough and taps are delivered loose from the IPS panels, for easy, safer transport, and assembled on site.
Polyrey Colours:
Healthcare IPS panels are available in any colour included in the Polyrey Washroom Colour Chart (see attached).
Colours Illustrated:
- B100 Banian Blanchi (Wood)
- B101 Banian Noirci (Dark Wood)
- B048 Bleu Oslo (Light Blue)
- M047 Mousse (Green)
- M003 Maryland Fonce (Mottled Dark Grey)
- B070 Blanc Megeve (White)
- G003 Gris Perle (Grey)
- N056 Noisetier Naturel (Light Wood)
Product Codes:
- HCSSUDM-C
- FFHIPSUNITSSUT2400R-KIT-CO - In a Corner Right Hand
- FFHIPSUNITSSUT2400L-KIT-CO - In a Corner Left Hand
- FFHIPSUNITSSUT2400R-KIT-BO - Boxed Out Right Hand
- FFHIPSUNITSSUT2400L-KIT-BO - Boxed Out Left Hand
- SSUT2400R - Pland Sola Stainless Steel Scrub 2400mm Right Hand Trough - Includes Trap Shroud
- SSUT2400L - Pland Sola Stainless Steel Scrub 2400mm Left Hand Trough - Includes Trap Shroud
- 20804T215 - Delabie Tempomatic Sensor Tap with BIOCLIP Removable Spout
