KWC DVS Automatic Toilet Sensor Flush Kit with Manual Override

KWC DVS Logo
Write a review

As low as £556.80 £464.00

This unique KWC Dart Valley Systems (DVS) toilet flush valve features a no-touch flushing system and a manual override switch in case power to the sensor fails. It is compatible with most concealed cistern toilet setups. It is an electronically operated drop valve that replaces the traditional siphon, delivering a measured volume of water from the cistern to the toilet bowl.

Read more

Customise KWC DVS Automatic Toilet Sensor Flush Kit with Manual Override

The price depends on the chosen options

Your Customisation

KWC DVS Automatic Toilet Sensor Flush Kit with Manual Override

Summary
Final product price inc VAT
£464.00 ex VAT

This unique KWC Dart Valley Systems (DVS) toilet flush valve features a no-touch flushing system and a manual override switch in case power to the sensor fails. It is compatible with most concealed cistern toilet setups. It is an electronically operated drop valve that replaces the traditional siphon, delivering a measured volume of water from the cistern to the toilet bowl.

The timer can be adjusted to any setting between 1 and 6 seconds to deliver the optimum flush. The flush valve is activated when the user’s hand passes within 50mm of the sensor. A 35-second delay mechanism prevents abuse between flushes by the user.

The Dart Valley Systems WC03-032 is the standard 1.5" flush valve kit. A 2" kit version, WC03-033, is also available (please select the correct size when ordering). The standard pack includes a 3m long cable.

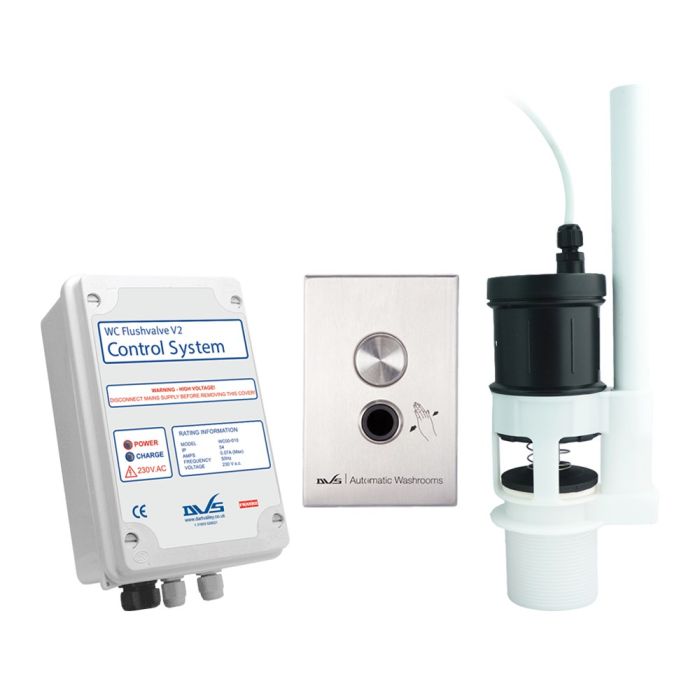

Pack Includes:

  • Control box: H185mm x W120mm x D75mm with integral 12vDC transformer
  • Flush valve with 3m cable
  • Optional concealed cistern kit with flush pipe (includes cistern case, float valve, flush pipe and fittings for the back of the pan)
  • An advanced vertical cistern kit is available for improved flushing

Features:

  • Up to 30% savings on water costs
  • Adjustable for optimum flush
  • Ideal for the disabled, elderly or very young
  • Hygienic no-touch operation
  • An optional tactile (switch) operation is available
  • Easy to install and maintain
  • Fits existing and new WCs
  • Vandal resistant
  • Eliminates handle maintenance

How it Works:

An electromagnetic solenoid coil is central to the operation of the Flush valve. Upon activation, an electromagnetic field is created within the upper part of the body. This draws up a metal piston which instantly opens the valve and releases the water full bore through the flush pipe into the WC. At the end of the timed flushing cycle, the electrical supply is cut off, thereby deactivating the solenoid and returning the valve to its normally closed position. The flush repeatability is very accurate.

Product codes:

  • WC03-032 - KWC DVS Automatic Toilet Sensor Flush Kit with manual override 1.5" base (3m cable)
  • WC03-033 - KWC DVS Automatic Toilet Sensor Flush Kit with manual override 2" base (3m cable)
  • WC02-011 - KWC DVS Standard Concealed Plastic Cistern Kit - 1.5"
  • WC02-012 - KWC DVS Standard Concealed Plastic Cistern Kit - 2.0"
  • WC02-013 - KWC DVS Vertical Concealed Plastic Cistern Kit - 1.5"
  • WC02-014 - KWC DVS Vertical Concealed Plastic Cistern Kit - 2.0"
