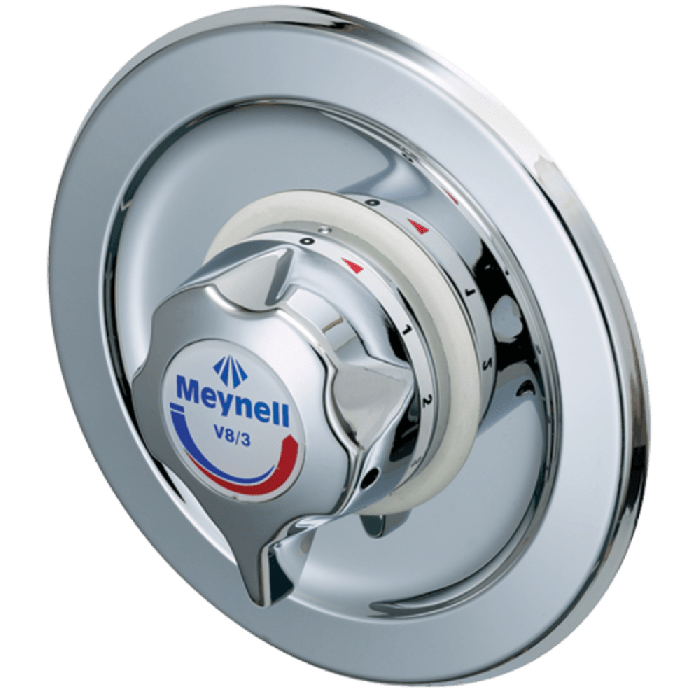

Rada Meynell V8/3 B and BL Concealed Chrome Thermostatic Shower Control

RADA Controls Logo
Write a review

As low as £489.60 £408.00

The V8/3 B and V8/3 BL Meynell are popular concealed thermostatic shower controls from RADA, frequently used in commercial settings such as hospitals, leisure centres, and student accommodation.

It is certified to the TMV3 and TMV2 standards and wall-mounted, with rear-entry pipes for concealed water feeds.

Read more

Customise Rada Meynell V8/3 B and BL Concealed Chrome Thermostatic Shower Control

The price depends on the chosen options

Your Customisation

Rada Meynell V8/3 B and BL Concealed Chrome Thermostatic Shower Control

Summary
Final product price inc VAT
£408.00 ex VAT

The V8/3 B and V8/3 BL Meynell are popular concealed thermostatic shower controls from RADA, frequently used in commercial settings such as hospitals, leisure centres, and student accommodation.

It is certified to the TMV3 and TMV2 standards and wall-mounted, with rear-entry pipes for concealed water feeds. Also, WRAS approved for the UK market.

Pipes to the shower head should be concealed behind a service void or an IPS panel set, making it suitable for pairing with any shower head that accepts concealed/rear-fed water supply connections.

This shower valve is available with either a standard, small lever (V8/3 B PRSM0563P) or an extended lever (V8/3 BL PRSM0625P). Both are supplied with internal strainers.

The longer lever option is particularly suitable for use by disabled people.

All V8/3 valves (excluding ‘lockshield’ model) are operated via a single sequential lever control, which, when rotated, initially opens the valve, then increases the temperature from cold through to a pre-settable maximum temperature stop.

Also available as a shower valve for exposed pipes to the shower head: Rada Meynell V8/3 Exposed Chrome Thermostatic Shower Control

Features:

  • Wall-mounted for concealed pipework
  • Easy to install
  • Safe thermostatic shutdown in less than 2 seconds
  • WRAS Approved
  • High flow rates at low pressures
  • Connection to 15mm compression or 1/2" BSP fittings
  • Standard connections are hot-left, cold-right, and top outlet when facing the control
  • Chrome-plated brass finish
  • Minimum maintained pressure 0.1 bar
  • Maximum static pressure: 10 bar

Suggested Shower Heads:

  • 1422692: Rada SF1 BIR Wall-Mounted Fixed Shower Head
  • 72966-CP: Rada SH1 UK Fixed Commercial Shower Head
  • 1.0.098.77.1: Rada VR105 Shower Head (Concealed Pipework)
  • 1.0.108.44.1: Rada BSR-S/300 Commercial Shower Head

Read More
