Clinical Wash Basin IPS Duct Module with Armitage Shanks Sanitaryware and Rada Sensor Kit

Typically 5 weeks From Sign Off
Product Code:
HCWBDMARMSNSR
As low as £2,454.00 £2,045.00

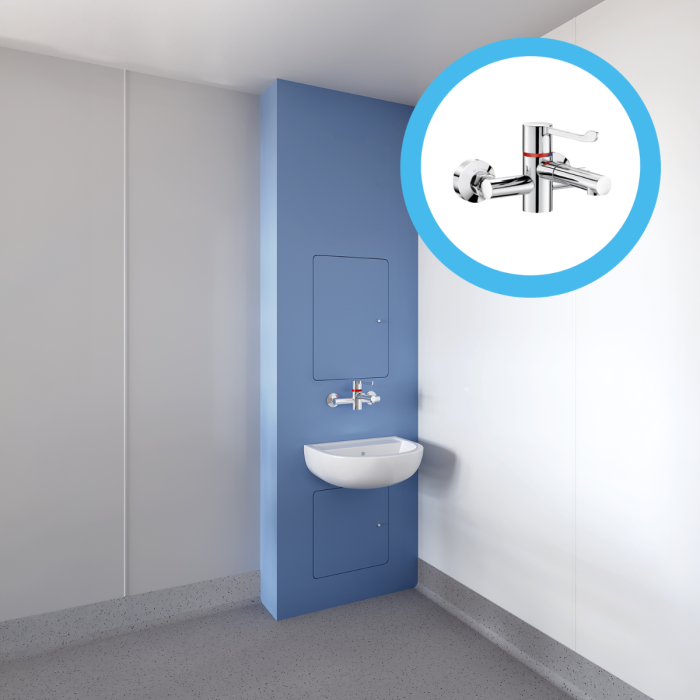

This clinical pre-plumbed sensor operated wash hand basin duct set module is ideal for use within any commercial washroom or Healthcare setting.

All modules are produced to HTM64 specification. Panels are manufactured as standard from impact resistant, sanitised antibacterial compact grade laminate for optimum hygiene, allowing appropriate cleaning chemicals and water to be used without affecting the life of the material.

Read more

Two Inc

30 days free credit with Two Inc

Buy Now, Pay Later, options at checkout

This clinical pre-plumbed sensor operated wash hand basin duct set module is ideal for use within any commercial washroom or Healthcare setting.

At the heart of each fully adjustable module is a self-supporting 16 gauge galvanised metal frame which can be securely fixed to floor, walls, and ceiling.

All modules are produced to HTM64 specification. Panels are manufactured as standard from impact resistant, sanitised antibacterial compact grade laminate for optimum hygiene, allowing appropriate cleaning chemicals and water to be used without affecting the life of the material.

Sanitary ware and Brassware: Units are manufactured in the factory as an Integrated Plumbing System (IPS), delivered to site with a combination of Armitage and Rada sanitary ware pre-fixed and installed from the factory.  Alternatively, sanitary ware and brassware Compliant with HTM 64 can be ordered separately from the Commercial Washrooms site.

Armitage Shanks/Rada Sensor Clinical Sanitaryware Included:

  • S2154 - Contour 21 Washbasin 500 No Tap, Back Outlet, HTMLB H M
  • 1.1503.702 - Rada sense washbasin kit T3
  • S8750 - Waste 1 1/4" outlet adaptor for all Contour back outlet washbasins
  • S9112 - Concealed hangers
  • S8920 - Trap 1 1/4" plastic resealing bottle trap (TRR1/P)
  • S8746 - Plastic strainer for back outlet washbasins

Infection control:

  • Sanitised antibacterial solid grade laminate panels
  • Abuse-resistant
  • Impervious to water
  • Resistant to suitable cleaning chemicals
  • Close fitting panels to minimise edge surfaces

Construction:

  • Metal wall and floor fixing channels
  • Sanitised antibacterial SGL panels
  • Pivoting and lockable access panels
  • Post-formed SGL vertical paneling
  • Suitable for heavy use and wet environments

Dimensions: Up to 800mm wide x 3000mm high x 300mm deep.
