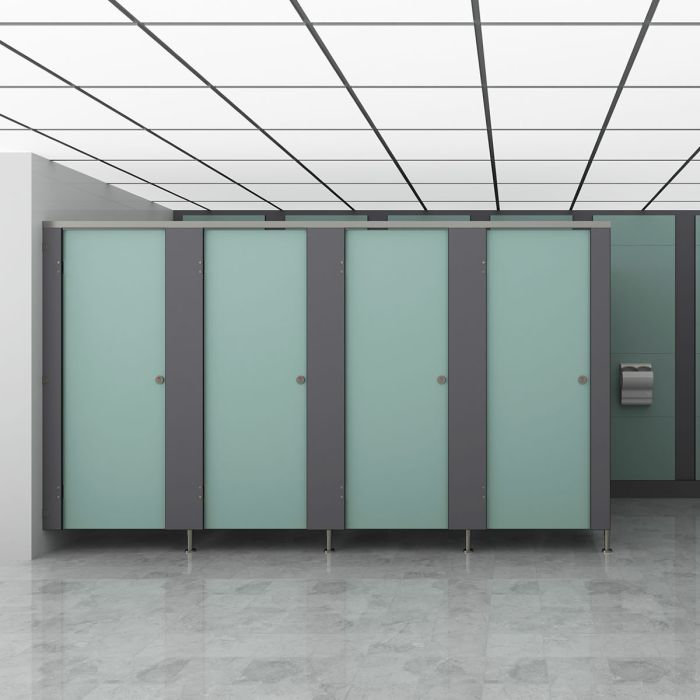

Ultra Plus SGL Toilet Cubicles With Stainless Steel Hardware (High Abuse Range)
As low as £532.80 £444.00
WCUltraPlus
Typically 18-21 Working Days From Sign Off
The Commercial Washrooms range of Ultra Plus Toilet Cubicles is designed for use within wet or dry environments. Panels and doors are manufactured from solid-grade laminate (SGL) with cubicle fittings made from stainless steel.
Ultra Plus is also often used where there is a vandal risk, thanks to the 13mm Solid Grade Compact Laminate (SGL) material and heavy-duty furniture and fixings used. The surface can be easily cleaned using water and is impervious to bacteria and cleaning chemicals, offering long life and ease of maintenance. The use of harsh chemicals can cause colour fading/loss.
The Commercial Washrooms range of Ultra Plus Toilet Cubicles are designed for use within wet or dry environments. Panels and doors are manufactured from solid-grade laminate (SGL) with cubicle fittings made from stainless steel.
Ultra Plus is also often used where there is a vandal risk, thanks to the 13mm Solid Grade Compact Laminate (SGL) material and heavy-duty furniture and fixings used. The surface can be easily cleaned using water and is impervious to bacteria and cleaning chemicals, offering long life and ease of maintenance. The Use of harsh chemicals can cause colour fading/loss.
The cubicle partitions, pilasters and doors are manufactured from 13mm Solid Grade Compact Laminate (SGL) with routered edges and black core. Stainless steel pilaster brackets, wall brackets, legs, locks and hinges finish this stylish design.
The cubicle prices displayed incorporate the common washroom layouts. Between walls assumes 2 solid walls on either side of the cubicle run and wall angle assumes the run of cubicles will be installed against 1 solid side wall.
Ultra Plus Cubicle Colours:
An attractive range of laminate colours are available. Please see the attached Polyrey colour chart. Other finishes are available at an increased cost.
Cubicle Installation:
The Ultra cubicle range is designed and supplied for size flexibility and ease of installation. Panels are manufactured bespoke to your room sizes. CAD drawings will be produced to confirm the exact dimensions required.
All cubicle ranges displayed on the Commercial Washrooms website are straightforward to install for any competent tradesman. However, for those in need of a full supply and installation service, we can help. Please contact the team for full details.
Additional options include IPS duct panels and vanity units manufactured in the same colour as the toilet cubicles.
For a full quotation please contact us with your room(s) layout.
Material Specification:
- Doors: 13mm Solid Grade Compact (SGL) with routered edges and black core.
- Partitions: 13mm Solid Grade Compact (SGL) with routered edges and black core.
- Pilasters: 13mm Solid Grade Compact (SGL) with routered edges and black core.
- Hardware: Satin Stainless Steel (SSS) fittings – Headrail, pilaster brackets, wall brackets, adjustable leg, door lock and hinges.
Dimensions Guide:
- Overall Cubicle Height: 1975mm including 150mm adjustable leg clearance.
- Partition Square Height: 1806mm
- Partition Depth: Made to the depth required
- Pilaster Height: 1825mm
- End/Wall Pilaster Width: 115mm
- Centre Pilaster Width: 230mm
- Door Width: Made to measure
- Inward Door Height: 1806mm
- Outward Door Height: 1775mm
