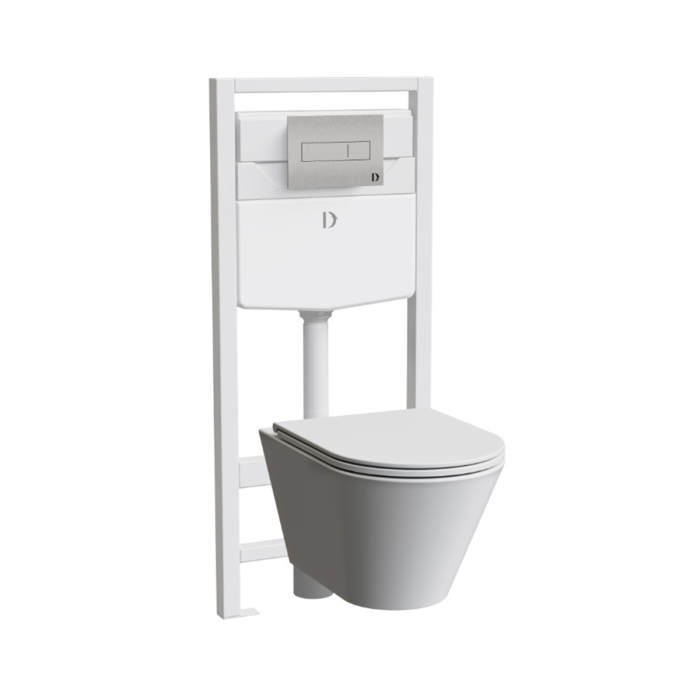

Dolphin Wall Mounted Pneumatic Toilet Pack
Product Code: DC3000.1
The Dolphin Wall Mounted Pneumatic Toilet Pack is a complete set designed for a fully operational wall-hung Toilet, with all necessary components included.
The Dolphin Wall Mounted Pneumatic Toilet Pack is a complete set designed for a fully operational wall-hung Toilet, with all necessary components included.
It features pneumatic actuation with a dual flush system, a height-adjustable cistern and pan, and offers flush plate options in brushed stainless steel or ceramic coating.
The pack meets multiple compliance standards and supports robust, high-capacity installation.
Key Features:
- Includes DB5511.P pneumatic cistern and frame, DC2005 wall mounted toilet pan and seat, and DB5550.P.1 brushed satin pneumatic flush plate
- Pneumatic actuation dual flush (6/3 litres standard, adjustable to 4.5/3 or 4/2.5)
- Flush plate available in brushed stainless steel or ceramic coating
- Height adjustable cistern and pan
- Pan & cistern weight tested to 400 kg
- WRAS approved inlet valve
- Compliant with DEFRA Interim agreement
- EN14055 Class two compliant
- Working pressure: 0.1 to 16 bar
- Actuation force: <20N
- 45 mm minimum wall build up required
- Opening in final wall finish should match flush plate size (not cistern opening)
- Declarations of performance and conformity provided
Product Codes:
- DC3000.1
- DB5511.P - Pneumatic cistern and frame
- DC2005 - Wall mounted toilet pan and seat
- DB5550.P.1 - Brushed satin Pneumatic flush plate
