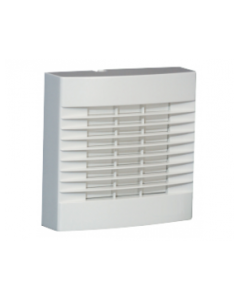

This 100mm Wall Mounted Centrifugal Extraction Fan With Timer is constructed using ABS thermoplastics with a gloss finish for a robust and long-lasting design, and can be wall or ceiling-mounted.
This 100mm Wall Mounted Centrifugal Extraction Fan With Timer is constructed using ABS thermoplastics with a gloss finish for a robust and long-lasting design, and can be wall or ceiling-mounted.
The adjustable electronic overrun timer is adjustable from 1 to 20 minutes.
Suitable for use in toilets, cloakrooms, bathrooms, and shower rooms. In addition, the centrifugal fan complies with part L of the building regulations.
Features:
- Wall or Ceiling Mounting
- High Impact ABS mouldings with external gloss finish
- Integral Backdraught Shutter
- Long Life Motor
- Flush or Surface Mountable
- Adjustable 98mm rear or side exit spigot
Technical Specification:
- Meets the requirements of Building Regulation Document F
- IP44 rated, BEAB Approved, and CE marked in accordance with all the relevant EEC Harmonised Directives
- Double Insulated, class II motor fitted with thermal protection
- Hole Diameters: Wall 117mm
- Airflow: 75m3/hr
Product Range Details:
- Rated Voltage 220-240v-50Hz
- Rated Wattage 11W
- Noise Level 36dB(A)
Product code: 401078
