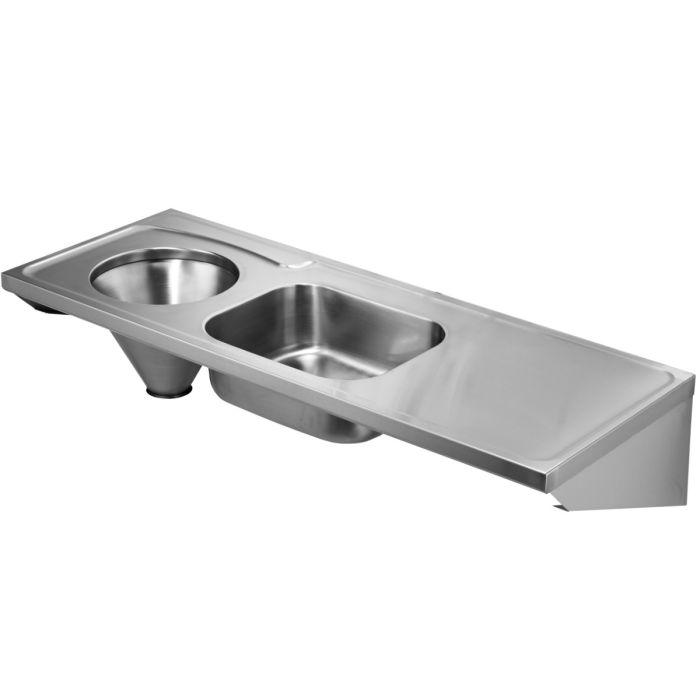

KWC DVS Stainless Steel DUHS Hospital Sluice Sink with Slop Hopper

A DUHS, HTM 64 Standard slop hopper hospital disposal unit with adjacent sink. Manufactured by KWC DVS in 1.2mm thick, grade 1.4301 (304) stainless steel with a satin finish.

Fitted with a sluice sink slop hopper, the top is turned down on all four edges and incorporates a wet area recess. The tap holes and drainer position (right/left) are optional.

This hospital disposal unit can be mounted on either stainless steel cantilever brackets or front leg supports, giving a working height of 900mm and has adjustable feet which can be screwed to the floor for extra stability.

Variations:

• G22018L: 1600mm x 600mm Left Hand Drain
• G22018LT: 1600mm x 600mm Left Hand Drain with tap 2 holes
• G22018R: 1600mm x 600mm Right Hand Drain
• G22018RT: 1600mm x 600mm Right Hand Drain with tap 2 holes

Also available without the washing sink: KWC DVS DUH Slop Hopper Hospital Disposal Unit

Features:

• Fitted with a sluice hopper at one end
• The hopper has a 110mm dia. outlet which can accept a P or S trap, available as an extra
• The wash-up bowl does not have an overflow.
• Flush-grated wastes are available as an extra.
• Suitable for use with a 9-litre capacity cistern with a plastic downpipe
• The unit should only be fed from a cistern or tank water supply.
• L or R after the code number refers to the handing of the drainer, i.e., left or right when facing the front of the unit
• HTM 64 STANDARD
• Optional Left or Right-hand drainer (please specify)
• Tap holes optional (please specify)

Note: A wash-up bowl is positioned next to the sluice hopper and is prepared for a 38 mm waste outlet.
