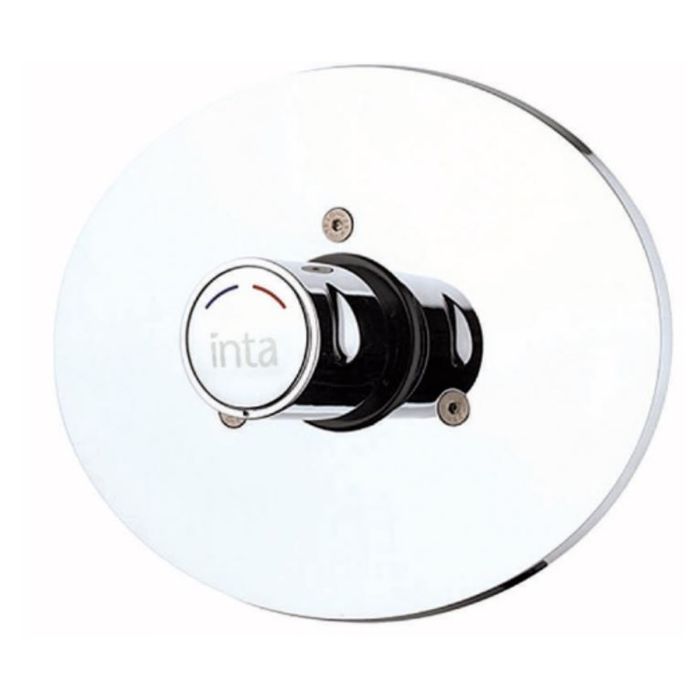

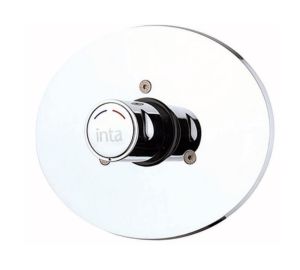

Concealed Inta Push Button Shower Control with Temperature Adjustment

As low as £262.80 £219.00

NC145CP-B

The NC145CP Inta Time Flow Shower Control with Adjustable Temperature control is available to suit concealed pipework set up. The shower is operated by manually pressing the control knob, the non-concussive action automatically closes the shower after approximately 15 seconds. Rotating the control push-button clockwise or anti-clockwise alters the mixed water temperature.

These shower valves do not have an integral Thermostatic Mixing Valve (TMV3) and therefore have a risk of scalding as the hot water may be at the temperature of the water heater. We recommend a TMV3 valve is installed in the hot water supply pipework - these eradicate the risk of scalding.

Customize Concealed Inta Push Button Shower Control with Temperature Adjustment

* Required Fields

Your Customization
Concealed Inta Push Button Shower Control with Temperature Adjustment
Concealed Inta Push Button Shower Control with Temperature Adjustment

In stock

£262.80 £219.00

Summary

    The NC145CP Inta Time Flow Shower Control with Adjustable Temperature control is available to suit concealed pipework set up.

    The shower is operated by manually pressing the control knob, the non-concussive action automatically closes the shower after approximately 15 seconds. Rotating the control push-button clockwise or anti-clockwise alters the mixed water temperature.

    These shower valves do not have an integral Thermostatic Mixing Valve (TMV3) and therefore have a risk of scalding as the hot water may be at the temperature of the water heater. We recommend a TMV3 valve is installed in the hot water supply pipework - these eradicate the risk of scalding.

    The automatic closing action and functional durability of this shower make it ideal for in high use areas such as leisure centres and washrooms.

    Features:

    • Suitable for use with unvented supplies, combi boilers, gravity and mains pressure systems
    • Non Concussive operation
    • Temperature adjustable control
    • Vandal Resistant Heads and Fast Fix Brackets to suite
    • Operating pressure range of 0.5 to 5 bar (dynamic)
    • Flow Time = 15 seconds ±3 seconds

    Specification:

    • MIN OPERATING PRESSURE: 0.5 BAR DYNAMIC
    • MAX OPERATING PRESSURE: 5 BAR STATIC
    • MAX INLET TEMPERATURE: 65°C
    • TIMED FLOW AT 1 BAR: 15 ± 3 SECONDS
    • INLET CONNECTIONS: G ½˝ F
    • OUTLET CONNECTIONS: 15MM COMPRESSION
    • CARTRIDGE ID8112
