DVS Urinal Sensor Flush Control Kit (Double Station)

Typically 1-2 Working Days
Product Code:
UC07-011
£474.00 £395.00

The Dart Valley Systems (DVS) individual operation urinal control system can be supplied for single or double station urinals. This urinal sensor flush kit will operate the flushing of two individual urinals directly from a mains water supply; no need for the use of a cistern.

The individual sensing urinal control systems are designed to detect individual users and only flushes when the user walks away. These kits are extremely reliable and an excellent way to conserve water use as the system is limited to working depending on use of the urinal.

Read more

Two Inc

30 days free credit with Two Inc

Buy Now, Pay Later, options at checkout

The Dart Valley Systems (DVS) individual operation urinal control system can be supplied for single or double station urinals. This urinal sensor flush kit will operate the flushing of two individual urinals directly from a mains water supply; no need for the use of a cistern.

The individual sensing urinal control systems are designed to detect individual users and only flushes when the user walks away. These kits are extremely reliable and an excellent way to conserve water use as the system is limited to working depending on use of the urinal.

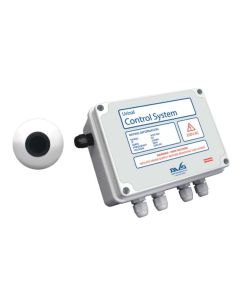

The kit comes complete with:

  • 1 x Urinal control system box with built-in power supply
  • 2 x Passive infra-red sensor with 50mm diameter stainless steel bezel suitable fo 50mm thick wall boards / panels. Thread extenders are available as additional cost option
  • 2 x Solenoid valves
  • 2 x 3 metre cables
  • Spade connectors

The sensory system requires a minimum water pressure of 0.5 BAR.  Low pressure kits are available which include low pressure 6.7mm valve/s. Variable settings allow adjustable time delays between flushing, providing maximum efficiency and savings.

An automatic ‘janitorial’ flush every 12 hours is also programmed into the unit, should the system not be used during that time.

Key Features:

  • Up to 80% savings on water costs
  • Extremely reliable
  • Low maintenance
  • Low power consumption
  • Solenoid valves included
  • Includes power PSU or batteries
  • Adjustable delay time
  • Janitorial flush (After 12 Hours of Non-Use)
  • Service contracts available
  • 2 Year DVS Manufacturers Guarantee
